PROVEN IN THE WORLD'S COLDEST CLIMATES

fLOOR HEATING re-engineered

Ultra-Fin® works differently-turning the joist cavity into a low-temperature radiant heating system. No concrete. No added floor height or weight. Simple, econonomical heating that works with heat pumps, boilers and vertually any floor finish.

DISCOVER

Explore Products

Request a Quote

Why Ultra-Fin®

Radiant Heat Without the Complexity

Ultra-Fin can be installed from above or below and adapted to solid joists, I-joists and open-web trusses. Each method uses a straightforward combination of tubing and Ultra-Fin heat emitters without concrete, added floor height or unnecessary components.
‍

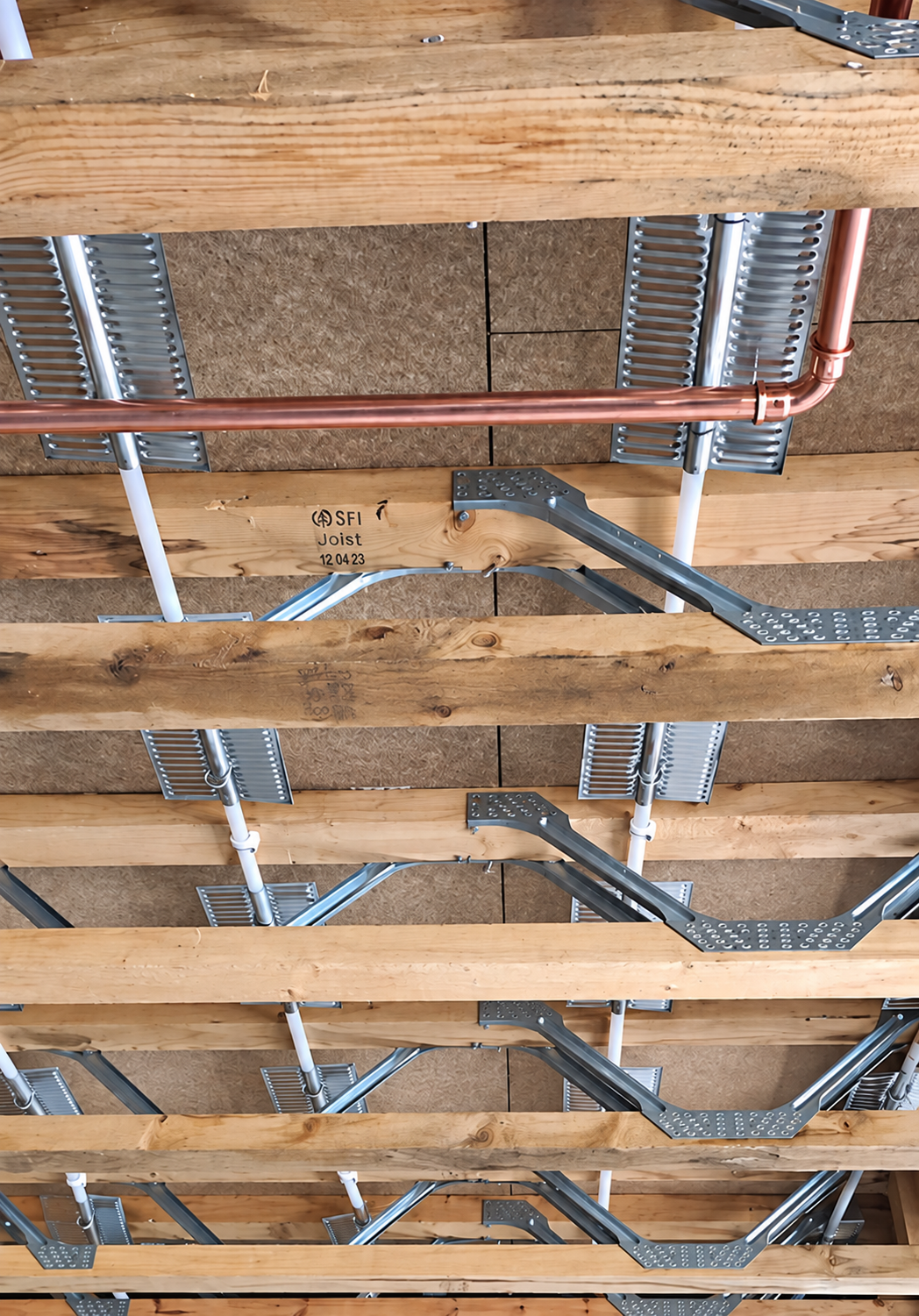

OPEN-WEB TRUSS METHOD

Route the tubing through the open webs and attach the Ultra-Fin heat emitters. No drilling or separate hangers required.

No concrete, screed or added structural weight.

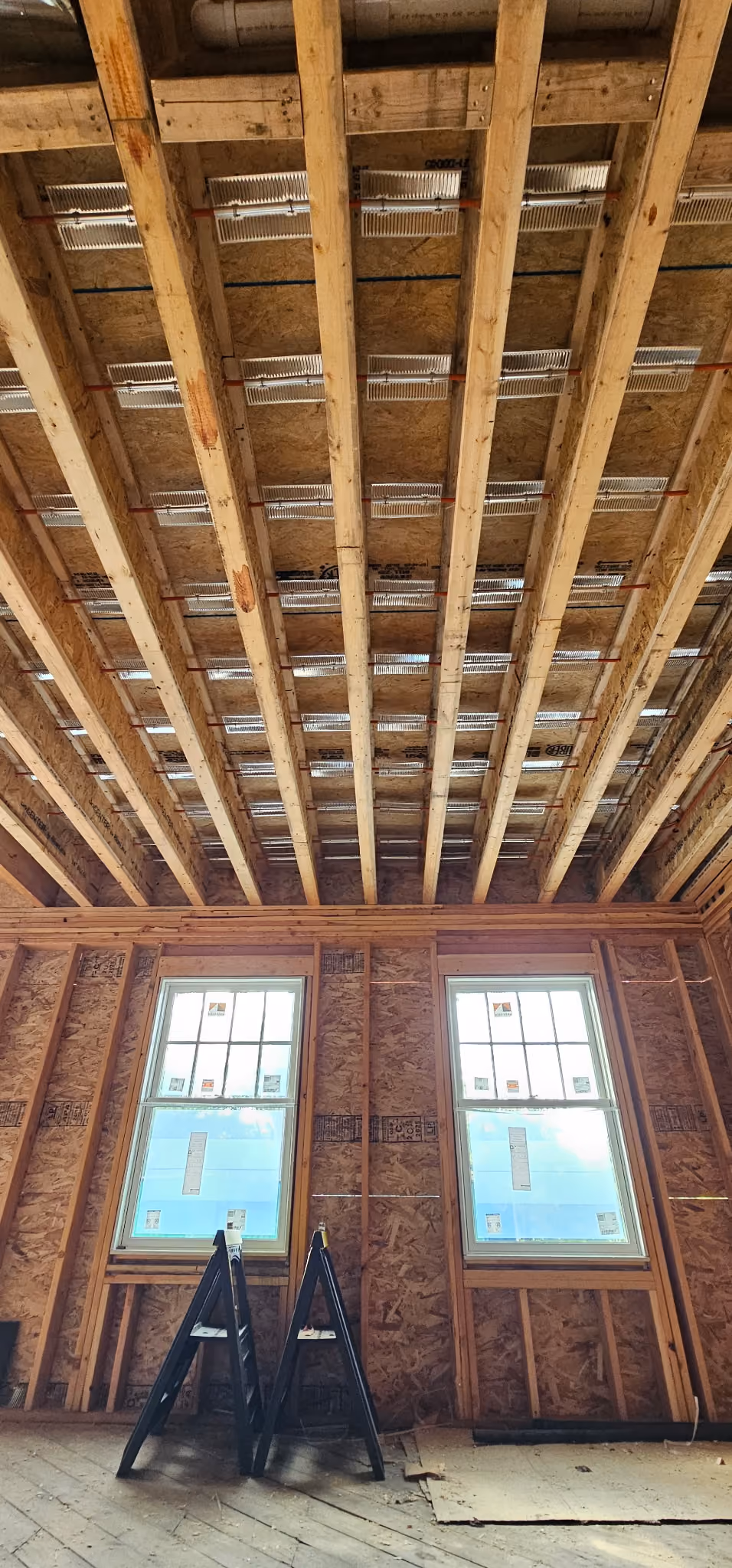

Interior of a wooden-framed room under construction with exposed ceiling joists, oriented strand board walls, two large windows, and two black sawhorses on a wooden floor.

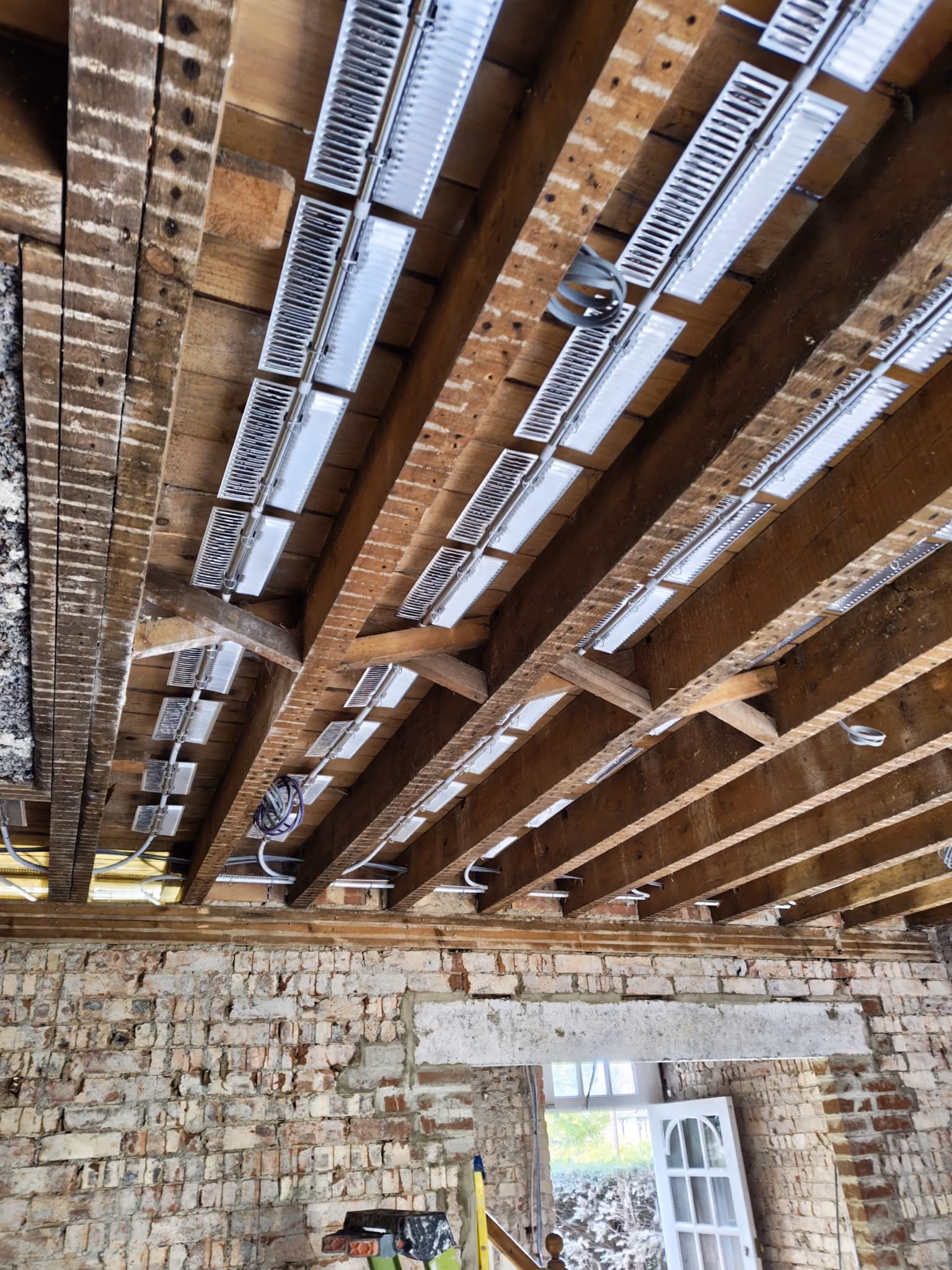

DRILLED-JOIST METHOD

Route the tubing through holes drilled at specified intervals. The joist supports the tubing without requiring separate hangers.

Efficient comfort with heat pumps or boilers.

TOP-DOWN METHOD

Install from above when the floorboards or subfloor have been removed. Ultra-Clip brackets and tubing offcuts create simple, adjustable supports.

Less tubing and straightforward installation.

Man installing red radiant floor heating pipes on metallic insulation in modern home.

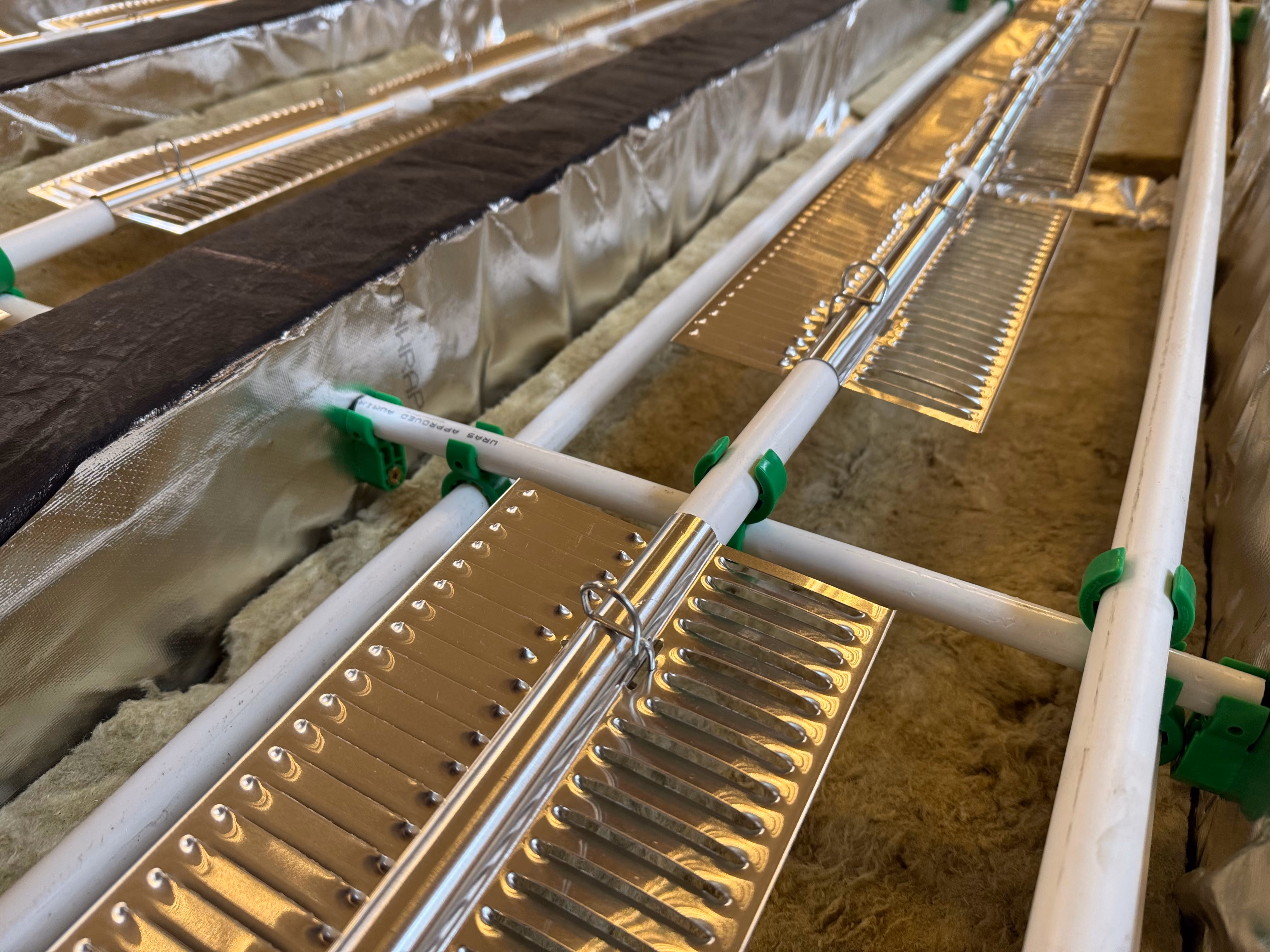

SUSPENDED METHOD

Snake hangers or Ultra-Clips supports suspend the tubing scurely within the cavity, allowing continuous routing with drilling required only at the end returns.

Suitable for hardwood, tile, vinyl, laminate and carpet.

See the Difference Across the Entire Floor

Ultra-Fin Distributes Heat Across the Entire Floor

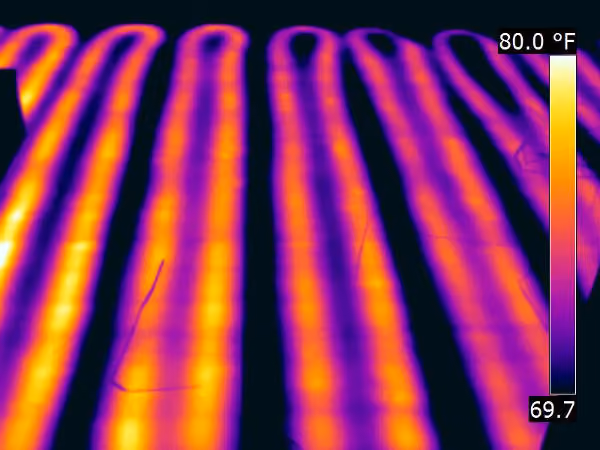

Infrared image showing floor radiant heating pipes with alternating warm yellow-orange and cooler purple areas, temperature scale from 69.7°F to 80.0°F visible on the right side.

Traditional

Visible hot and cold areas

Thermal image showing a max temperature of 78.9°F with colors ranging from blue (cool) to red and yellow (warm).

Ultra-Fin®

The entire floor becomes a radiator

Conventional floor heating

Ultra-Fin®

Installation

Built above or into the floor

Installed inside the joist cavity

Floor height

Can create additional build-up

Finished floor height unchanged

Structural weight

Screed or concrete can add significant weight

No added load

Renovation flexibilty

Often requires lifting or building up the floor

Can be installed from above or below

Heat delivery

Relies primarily on direct-contact transfer

Convection and radiant heat warm the entire floor evenly

How it Works

Radiant Comfort in Four Simple Steps

Ultra-Fin® is a simple in-joist system that turns the entire floor into a gentle, even radiant surface.

1

WARM WATER

Heated water flows through tubing from the heat source.

2

BALANCED FLOW

The Cross Manifold delivers balanced flow to each room or heating zone.

3

THE JOIST CAVITY WARMS

Ultra-Fin uses convection and radiant heat to warm the underside of the floor.

4

COMFORT IS DELIVERED

The entire floor becomes a gentle, even radiant surface.

EXPLORE THE system

See the full system

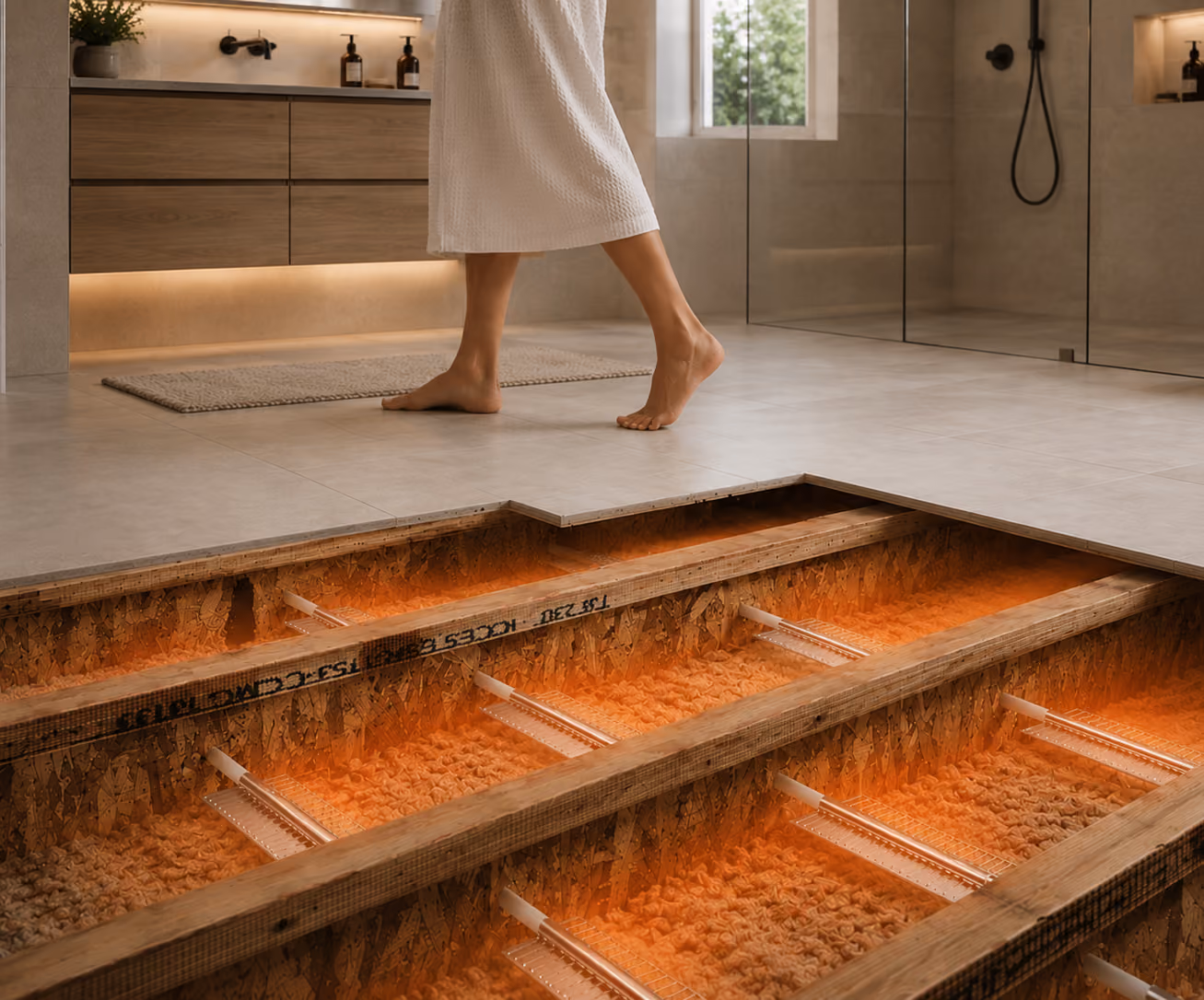

Cutaway view of underfloor heating system beneath bathroom floor tiles with a person in a white bathrobe stepping barefoot on the warm tile floor.

Our Products

Four Engineered Systems
One Complete Platform

Choose only what your project needs. Each product works independently or as part of a complete Ultra-Fin System.

Wall insulation with brown tape strips and white plastic mesh secured by green fasteners.

Ultra-Fin® Underfloor Heating

Radiant Floor Heating

Simple in-joist heating for new builds and retrofits, delivering fast, even comfort at low water temperatures-with no added floor height.

Fast, even warmth

Low temperatures operation

No floor build-up

Compatible with virtually any floor finish

LEARN MORE

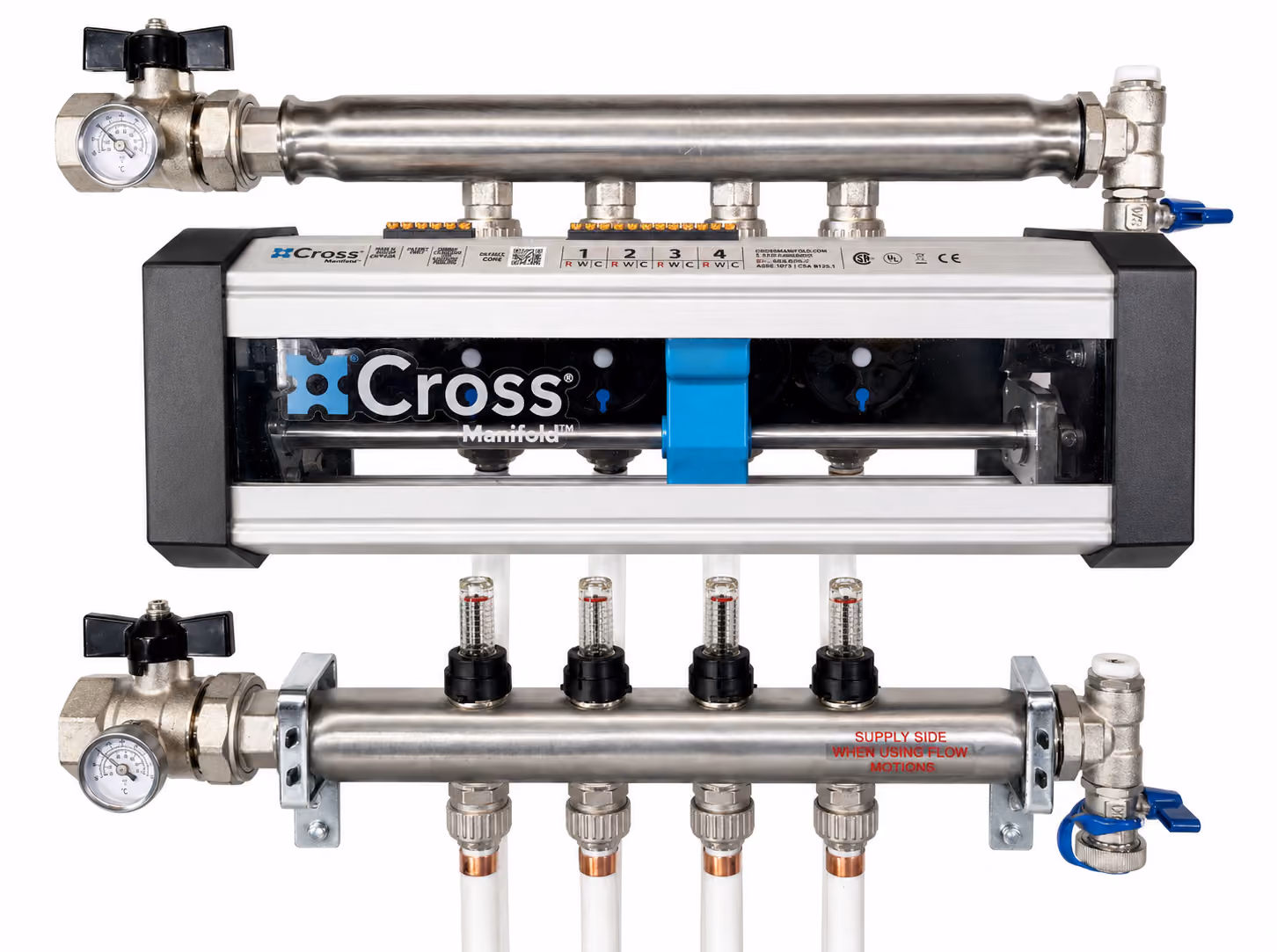

Cross Manifold plumbing system with gauges, valves, and flow meters on stainless steel pipes.

Cross™ Manifolds and Controls

Plug-and-Play Zoning

A complete, pre-assembled zoning system that installs in minutes and eliminates the spring-loaded valves and thermal actuators responsible for common manifold failures.

Installs in minutes

Plug-and-play installation

No spring-loaded pin valves

Up to 99% less energy than traditional thermal actuators

LEARN MORE

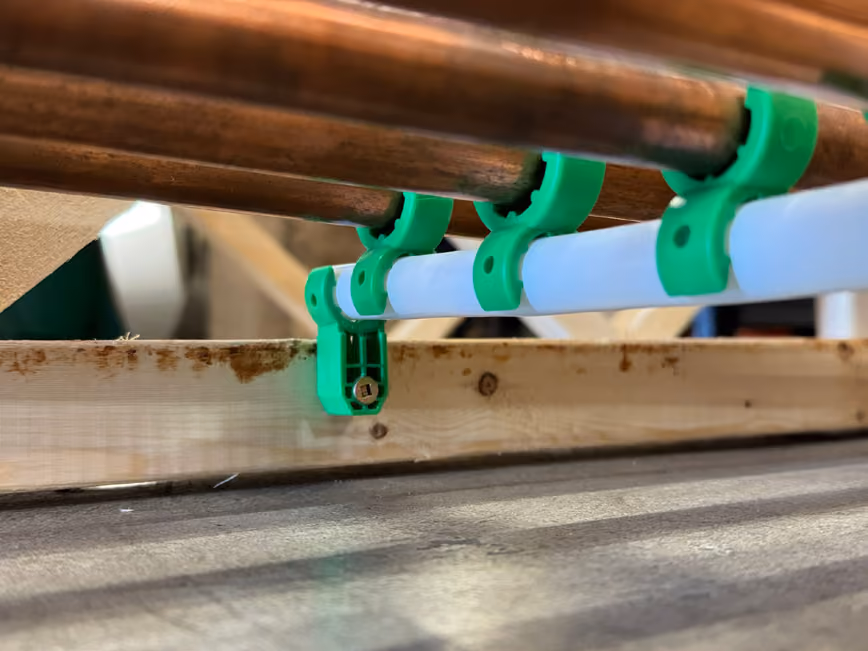

Green pipe clips securing white and copper pipes to a wooden frame against a concrete floor.

Ultra-Clip™ Support System

One Clip. Countless Applications

Ultra-Clip uses short peices of leftover tubing to create strong, custom brackets for a wide range of heating, plumbing and electrical applications.

Reuses scrap tubing

Reduces material waste

Fast, secure installation

Creates custom support solutions

LEARN MORE

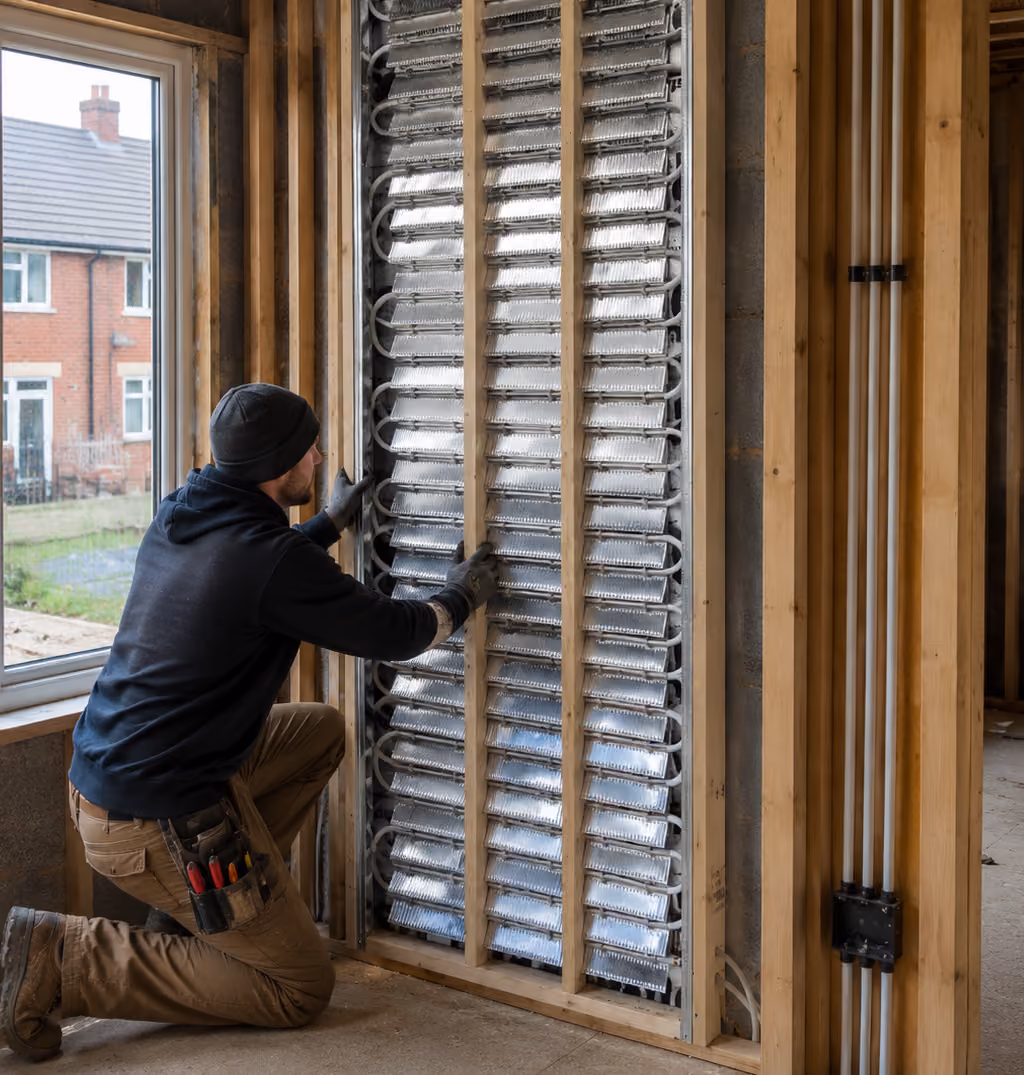

Worker installing a metal panel heating system within wooden framing of a house under construction.

Ultra-Core™ Wall Heating

In-Wall Heating (Coming Soon)

Powerful, quiet comfort built into the wall cavity.

Quick response

Low temperature operation

Space-saving installation

Works with boiler and heat pumps

LEARN MORE

Ultra-Calc™

Design and Size Your System

Ultra-Calc™

Design and Material Calculator

Our free online design tool calculates room-by-room heat loss and determines the required tubing layout, Ultra-Fin spacing and materials for your project in metric or imperial.

Room-by-room heat loss

Tubing layouts and Ultra-Fin spacing

Required water temperatures

Material estimates and room layouts

Open in a new tab

Applications

One platform. Every Application.

ALL Applications

Renovations

Install from above or below with no added floor height.

New Builds

Design simple, efficient radiant heating directly into the joist cavity.

Commercial

Even, efficient heating for offices, retail and commercial spaces.

Heritage

Discreet, low-impact heating that helps preserve the building fabric.

Heat Pumps

Low-temperature floor heating designed for modern heat pumps.

Cross™ Manifolds and Controls

Plug-and-Play.
Built for Reliability.

A complete, pre-assembled zoning system that installs in minutes and eliminates the spring-loaded pin valves and traditional thermal actuators responsible for common manifold failures.

Installs in minutes

No traditional thermal actuators

Plug-and-play wiring

Up to 99% less actuator energy

No spring-loaded pin valves

Quiet, precise zone control

Learn more

Interior of a wooden floor under renovation with floorboards partially removed revealing insulation and heating pipes, with tools and materials scattered around and a person walking by in the background.

Ultra-Fin Systems · 2027 Edition

Installation Product Guide

Complete Guide · 124 Pages

Resources

Everything You Need to Install it Right.

Access the complete Ultra-Fin® Systems guide and technical resources for architects, engineers, bulders and heating professionals.

CONTACT TECHNICAL SUPPORT

Proven in the Field

What Our Customers Say

Steven G. Pisauro

Layton, NJ

"We installed 26 heating zones and over 8000 feet of tubing in the house, we fired up a portion in October, and then we fired up the rest in December just before Christmas. After that, we were working in t-shirts all winter long. We weren't even insulated - the house was basically wide open, just the windows in - and it just heated right up."

Robert Brown

Mt. Pleasant, PA

"I have Ultra-Fin in both floors of my home. Many local contractors were skeptical about this system. That was almost eight years ago. Our home always stays warm even in sub-zero weather. We also get many compliments in the winter when people come to our home. They love the warm floors. The fins and hanger installation was simple and effective."

Ken & Brenda Tamlin

Lindsay, ON, Canada

"I wouldn't trade our Ultra-Fin system for anything we've had it for five years and it's been great. It's worked fine with our hardwood floors, and it's definitely been cheaper for heat in the winter. In fact, we were comparing our heating costs with some neighbors who have different radiant systems, and our costs were about 30 percent less per day."

Michael S. Bailey

Halifax, NS, Canada

"I chose the Ultra-Fin heating system for our new home. The system was installed under three floor coverings; hardwood, ceramic tile, and linoleum. I am delighted to say the performance claims made by Ultra-Fin proved to be correct. After experiencing Ultra-Fin I would never consider any other system."

Christopher Milo, Plumber

Minnesota

"I have installed your product in one of my customers homes. After 6 years of use it still proves to be the best product I have ever used in a joist space installation. The install was very simple and the 3/4 inch maple floor is always perfectly warm with equal distribution. Therefore I have chosen to install this in my own home. Just thought you might like to know about my success with your product."
