Ultra-Core™ Wall Panels

More room.
Better comfort.
‍No Bulky Radiators.

Ultra-Core wall convector panels install within standard wall framing, delivering gentle radiant and convective heat without taking up valuable floor space. Low-temperature ready. Quiet. Discreet.

Red shield outline with a check mark inside.
50-year
warranty
Red thermometer icon indicating heat or temperature.
35–82 °C / 95–180 °F
flow temp
Floor plan layout with four rooms outlined in red on a white background.
0m² / 0 sq.ft.
FLOOR SPACE used
How it works
How it works
Performance
Performance

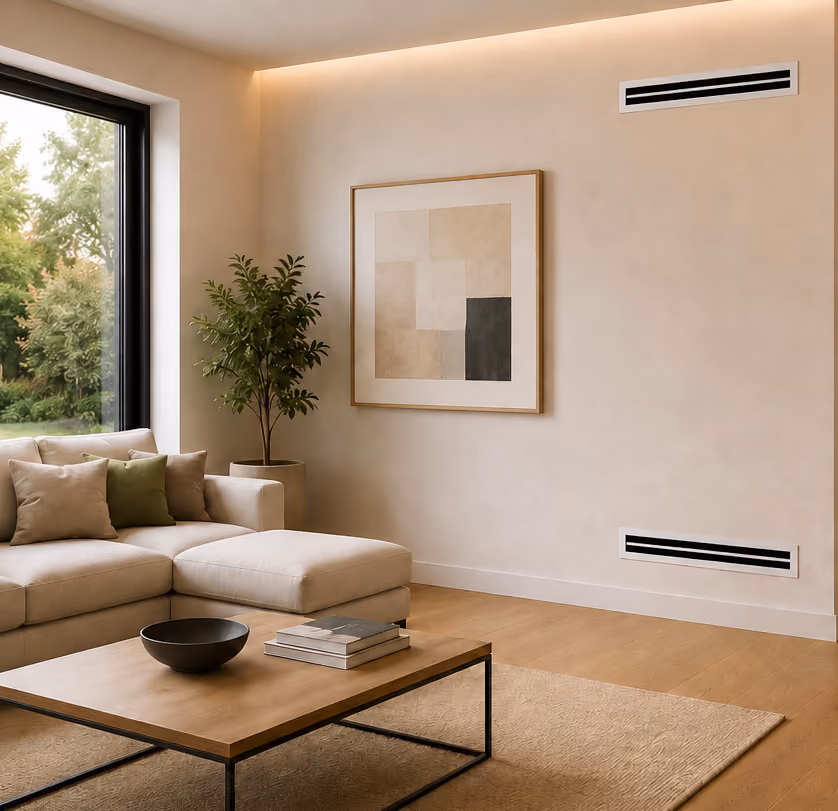

Modern living room with beige sectional sofa, wooden coffee table, potted plant, and abstract wall art.
‍

Heating, quietly rethought.

The Ultra-Core Wall Convector Panel is a modular radiant and convective emitter that fits within standard wall framing - delivering comfortable heat without taking up valuable floor space.

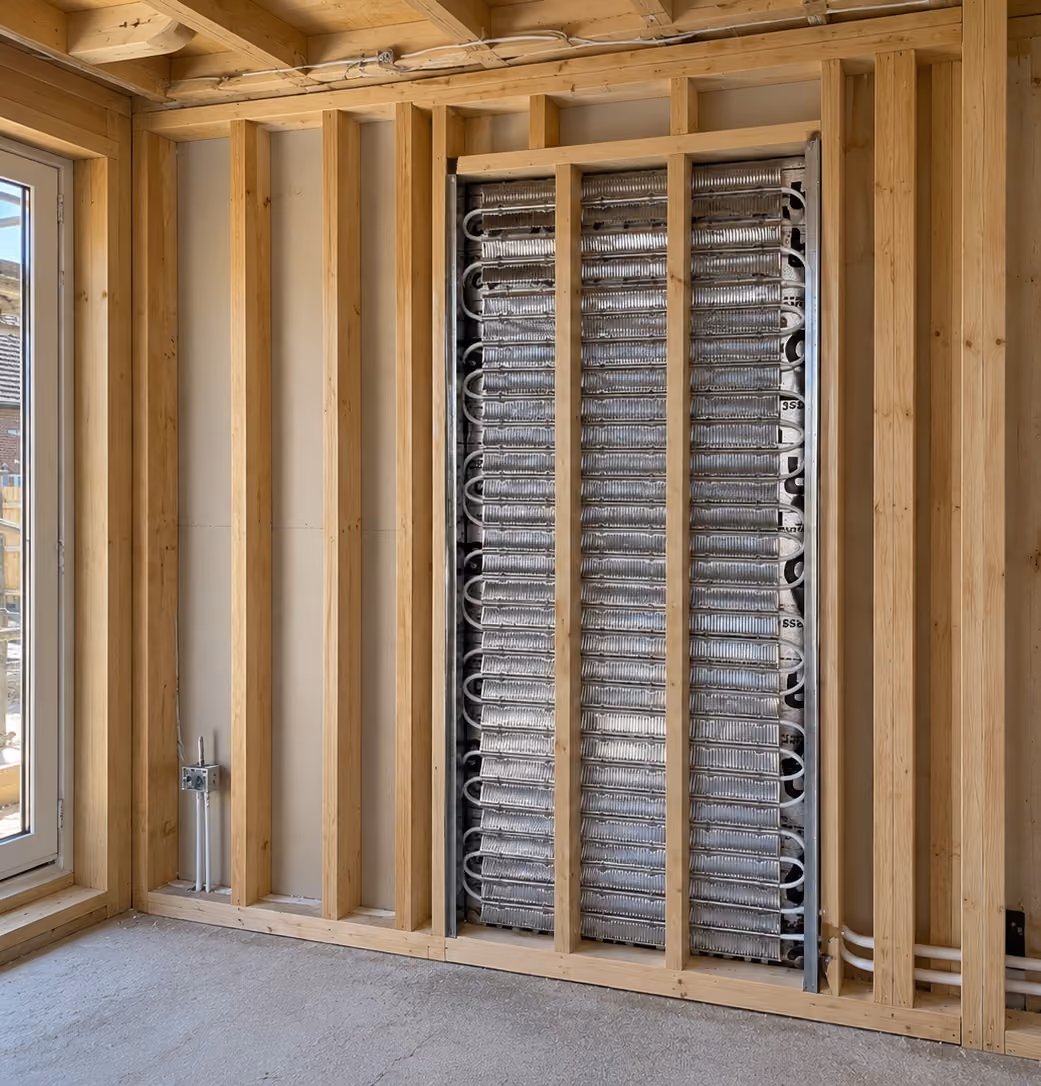

Unfinished room with wooden studs and a metal wall heating or cooling coil panel installed.
Red prohibition or no entry symbol on white background.
DESCREET BY DESIGN
Installed within the wall, with only slim upper and lower grilles visible.
Red armchair icon with backrest and armrests.
MORE USABLE SPACE
Keeps floors clear and walls more usable.
A green water pour symbol representing the Aquarius zodiac sign on white background.
EVEN COMFORT
Gentle radiant and convective heat for consistant room comfort.
Magnifying glass with a red cancel or hide symbol overlay.
CLEAN AESTHETIC
Minimal visual impact for cleaner, more flexible interiors.
Red outline of a stylized leaf icon on a white background.
LOW-TEMPERATURE READY
Designed for lower water temperatures and heat-pump systems.
Red shield outline with a check mark inside.
BUILT TO LAST
High-quality materials backed by a 50-year warrantee.
Why Ultra-Core™

Optimized for Low Water Temperatures.

When moving from traditional boilers to low-temperature heat sources such as air-to-water heat pumps, standard radiators often need substantially more surface area to deliver the same room heat output.

Most homes were never designed around oversized radiators.

Ultra-Core wall convector panels are designed for low-temperature systems, delivering comfortable radiant and convective heat without sacrificing valuable floor space.

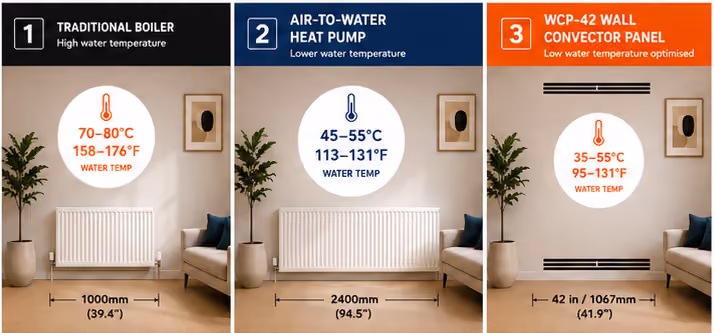

Comparison of three heating systems showing water temps and radiator widths in a living room setup.
Traditional boiler
Heat pump + radiator
WCP Panel
WATER TEMPERATURE
70-80 °C - 158-176 °F
45-55 °C - 113-131 °F
35-55 °C - 95-131 °F
RADIATOR SIZE
1000 mm (40 inch)
2400 mm (95 inch)
No wall projection-flush grilles only
WALL SPACE USED
0.8 m2 (8.6 sq. ft.) of wall
1.9 m2 (20.5 sq. ft.) of wall
LOW-TEMPERATURE PERFORMANCE
Not optimized
Requires a larger radiator
Designed for low-temperature operation
VISUAL IMACT
Visible
Very visible
Discreet grilles only
Many homes can use a heat pump. Few were designed around oversized radiators.
Larger radiators reduce usable wall space.
Lower water temperatures require more emitter area.
Oversized radiators dominate interiors
Ultra-Core places the emitter within the wall, leaving only discreet grilles visable.
New Construction

Built in. Built Better.

Ultra-Core™ panels install quickly and neatly during framing without bulky wall-mounted radiators or lost floor space.

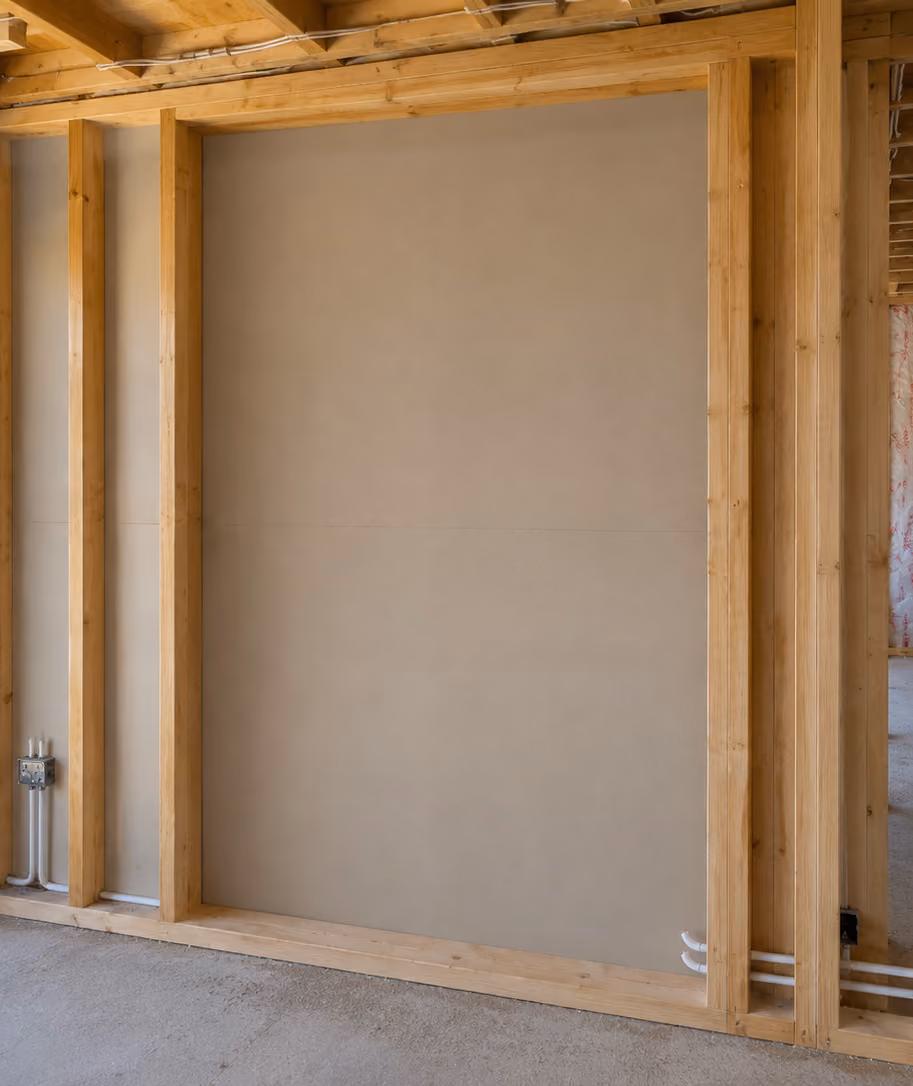

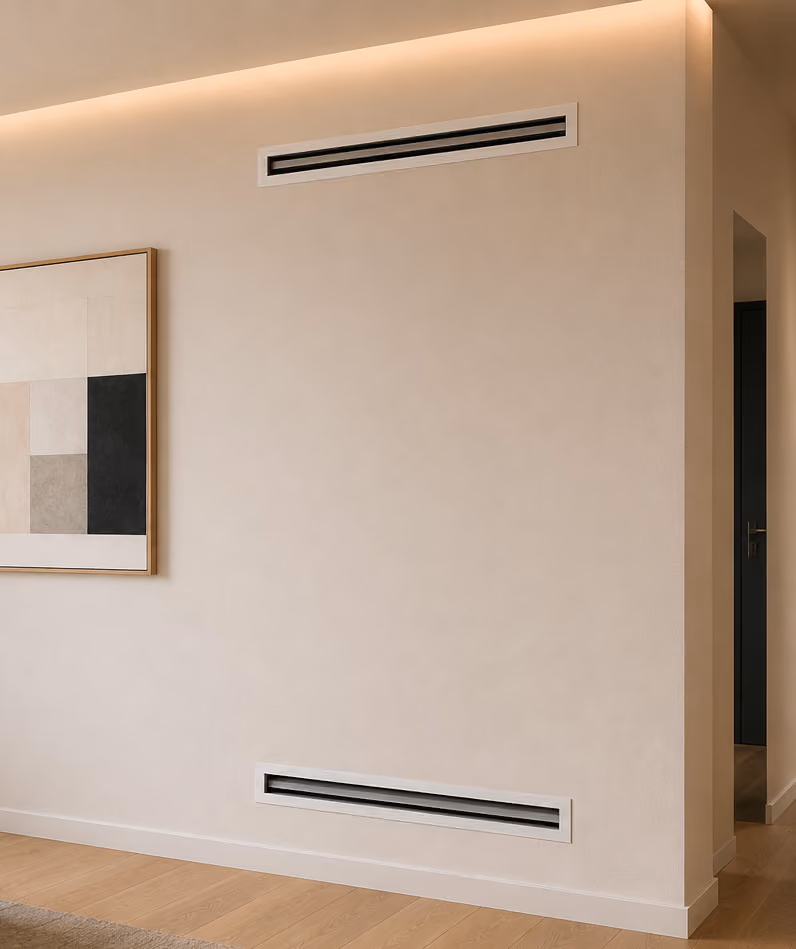

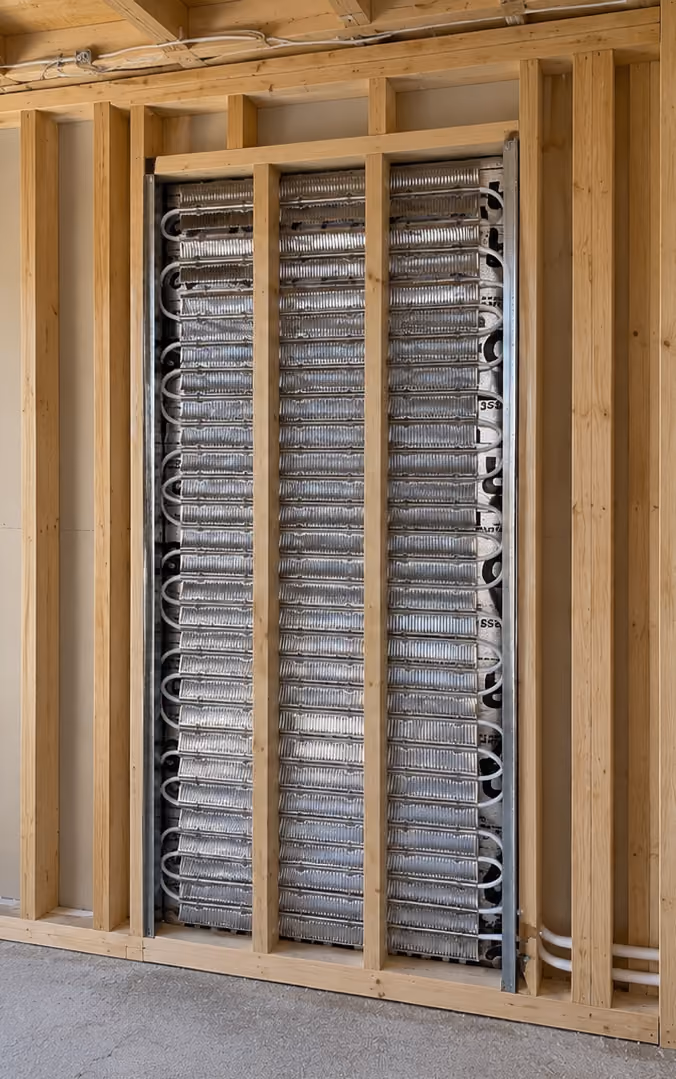

Interior wall framed with wood studs, drywall partially installed, and some electrical wiring visible.Wall cavity with a radiant heating panel and visible wood framing in an unfinished room.Minimalist beige wall with two rectangular air vents and part of geometric wall art on wood floor.
01
PLAN & PREPARE
Plan your layout and mark panel locations during framing.
02
INSTALL PANELS
Secure panels within the wall cavity and connect piping.
03
COMPLETE THE BUILD
Close the wall, fit the slim grilles, and commision the system.
Upgrading

Simple. Smart. Effective.

Replace bulky radiators and upgrade your comfort with minimal disruption.

01
REMOVE RADIATOR
Safely disconnect and remove the existing radiator.
02
OPEN THE WALL CAVITY
Open the wall to access pipes and evaluate the space.
03
INSTALL PANELS
Secure the panels within the wall cavity and connect the pipework.
04
COMPLETETHE UPGRADE
Close the wall, fit the slim grilles and commision the system.
Man wearing black hoodie and beanie installing or adjusting white baseboard heater vent near a wall.Wall cavity with a radiant heating panel and visible wood framing in an unfinished room.

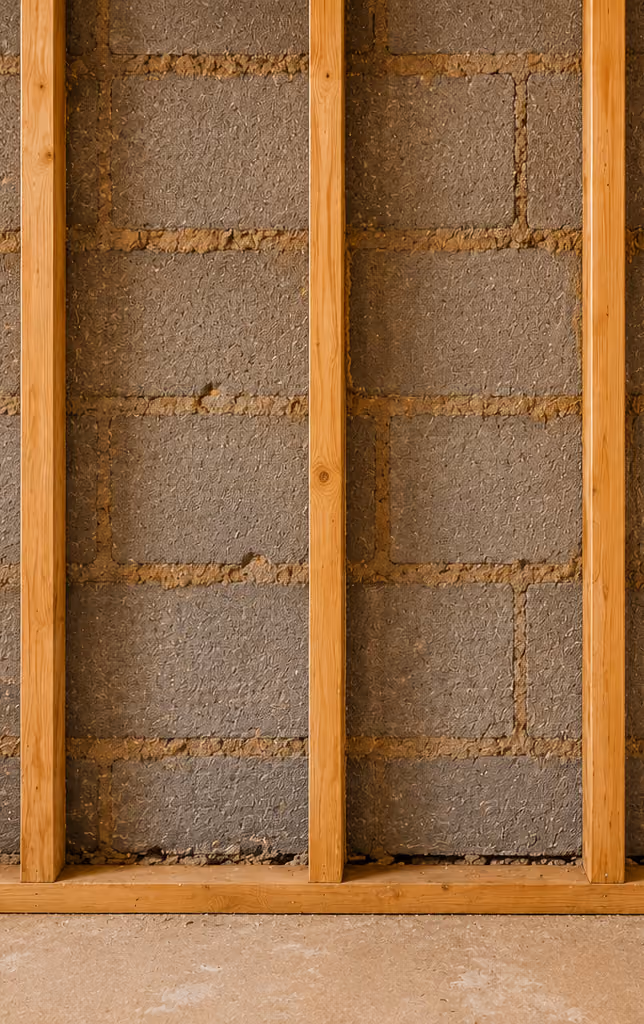

Wooden studs framing a wall with rough concrete blocks behind and a concrete floor below.Worker in black hat and hoodie adjusting a valve on a beige radiator while kneeling on floor.Worker installing a metal panel heating system within wooden framing of a house under construction.
How it works

Built Into the Wall. Built for the Future.

Ultra-Core™ Wall Convector Panels integrate directly into standard wall framing, delivering low-temperature radiant and convective heating without the bulk of oversized radiators.

Designed for modern heat pumps, renovations, apartments and high-performance homes, Ultra-Core™ systems free up valuable wall space while maintaining comfortable, even heat.

More comfort. More space. Better design freedom.

HEAT PUMP RETROFITS
Lower flow temperatures. Higher efficiency.
NEW LOW-ENERGY HOMES
Built for modern performance standards.
RENOVATIONS & PERIOD PROPERTIES
No bulky radiators. Preserve character.
APARTMENTS & COMPACT SPACES
Maximum comfort. Minimum space.
COMMERCIAL & MULTI-UNIT DEVELOPMENTS
Scalable, quiet and architecturally intergrated.
Modern living room with beige sofa, round coffee table, abstract wall art, air vents showing airflow.
50-Year Warranty
Engineered to last. Built to perform for decades.
Energy Efficient
designed for lower flow temperatures and efficient heat-pump operation..
Silent Comfort
No fans. No noise. Just natural, comfortable warmth.
Simple Integration
Installs neatly within the wall. Only slim grilles remain visible.
Future Ready
Designed for modern, low-temperature heating systems.
Every Room

Beautiful Walls.
Built-In Performance.

Ultra-Core™ Wall Convector Panels deliver gentle radiant and convective heat from within the wall, leaving only slim upper and lower grilles visible.

Consistent comfort, moe usable space and clean design throughout your home.

Red prohibition or no entry symbol on white background.
NO BULKY PANELS
Slim, discreet grilles blend beautifully with any interior.
Red armchair icon with backrest and armrests.
GET YOUR ROOM BACK
Built into the wall with no bulky units taking up valuable space.
Red clock icon showing the time as 2:00.
EASY TO LIVE WITH
Quiet, simple and designed for everyday comfort.
Red outline of a stylized leaf icon on a white background.
COMFORTABLE, EVEN HEAT
Gentle radiant and convective warmth throughout the room..
Red shield outline with a check mark inside.
BUILT TO LAST
Engineered for durability and long-term performance.
Floor plan layout with four rooms outlined in red on a white background.
ONE SYSTEM. EVERY ROOM.
Consistant comfort and clean design throughout your home..

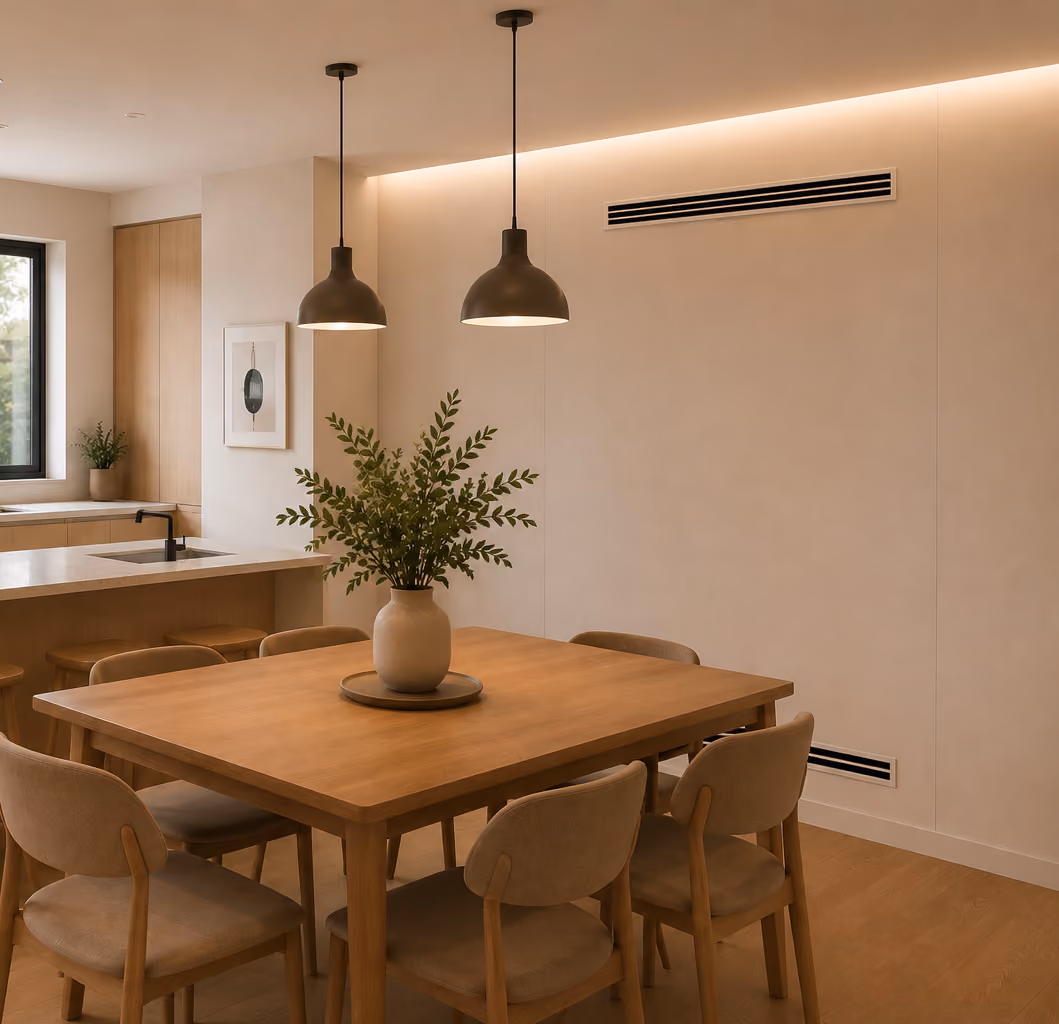

Modern dining room with wooden table, beige chairs, hanging lights, and a plant centerpiece.

One System. Every Room. Total Harmony.

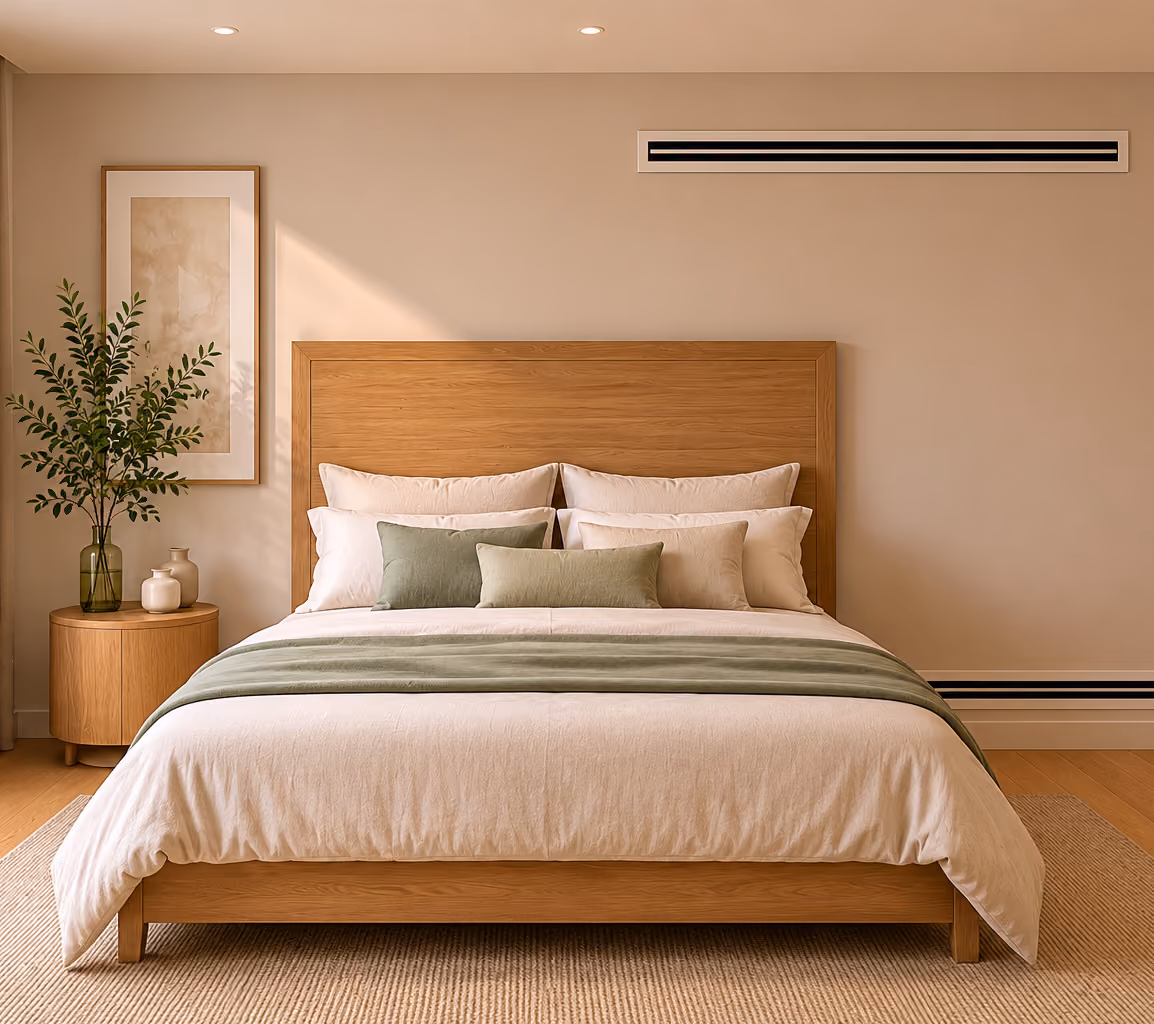

Modern bedroom with wooden bed, beige bedding, green pillows, round bedside table, and wall art.
Modern dining room with wooden table, beige chairs, hanging lights, and a plant centerpiece.
Minimalist entryway with wooden floor, beige curtains, a rectangular rug, and a framed abstract artwork.

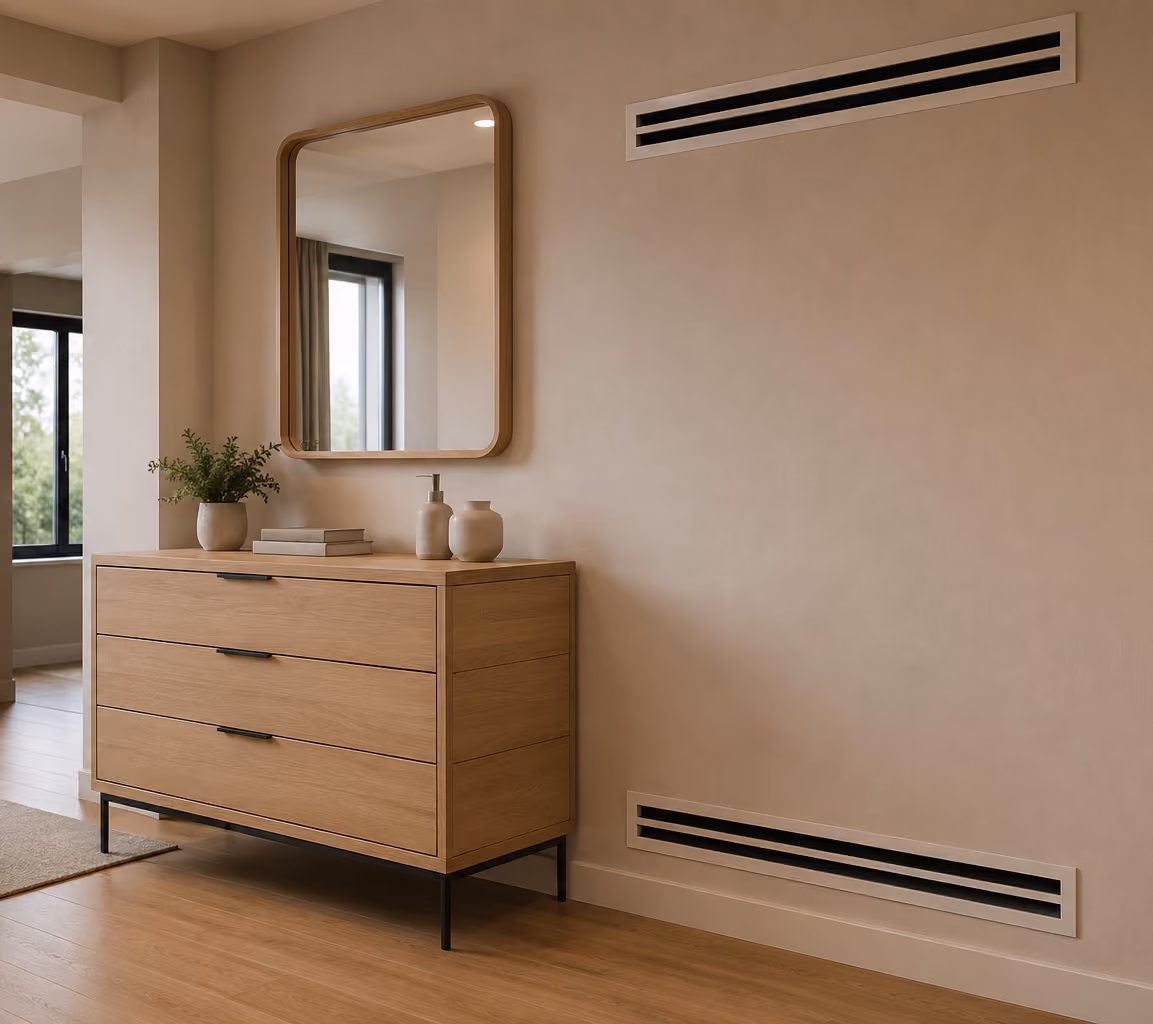

Minimalist wooden dresser with three drawers, a mirror, and decorative items on top in a neutral room.
Performance

Ultra-Core™ Wall Convector Panels

Modular Radiant and Convective Heating. Replace Bulky Radiators. Reclaim Space. Simplify Design.

Ultra-Core panels integrate into standard wall framing to deliver discreet radiant and convective heating without projecting into the room.

Enjoy consistent warmth, more usable space and greater design freedom throughout the space.

Built-In integration: Installs within standard wall framing, leaving only slim upper and lower grilles visible.
Compatible wall finishes: Suitable for drywall, plaster and wood panelling when installed according to specifications.

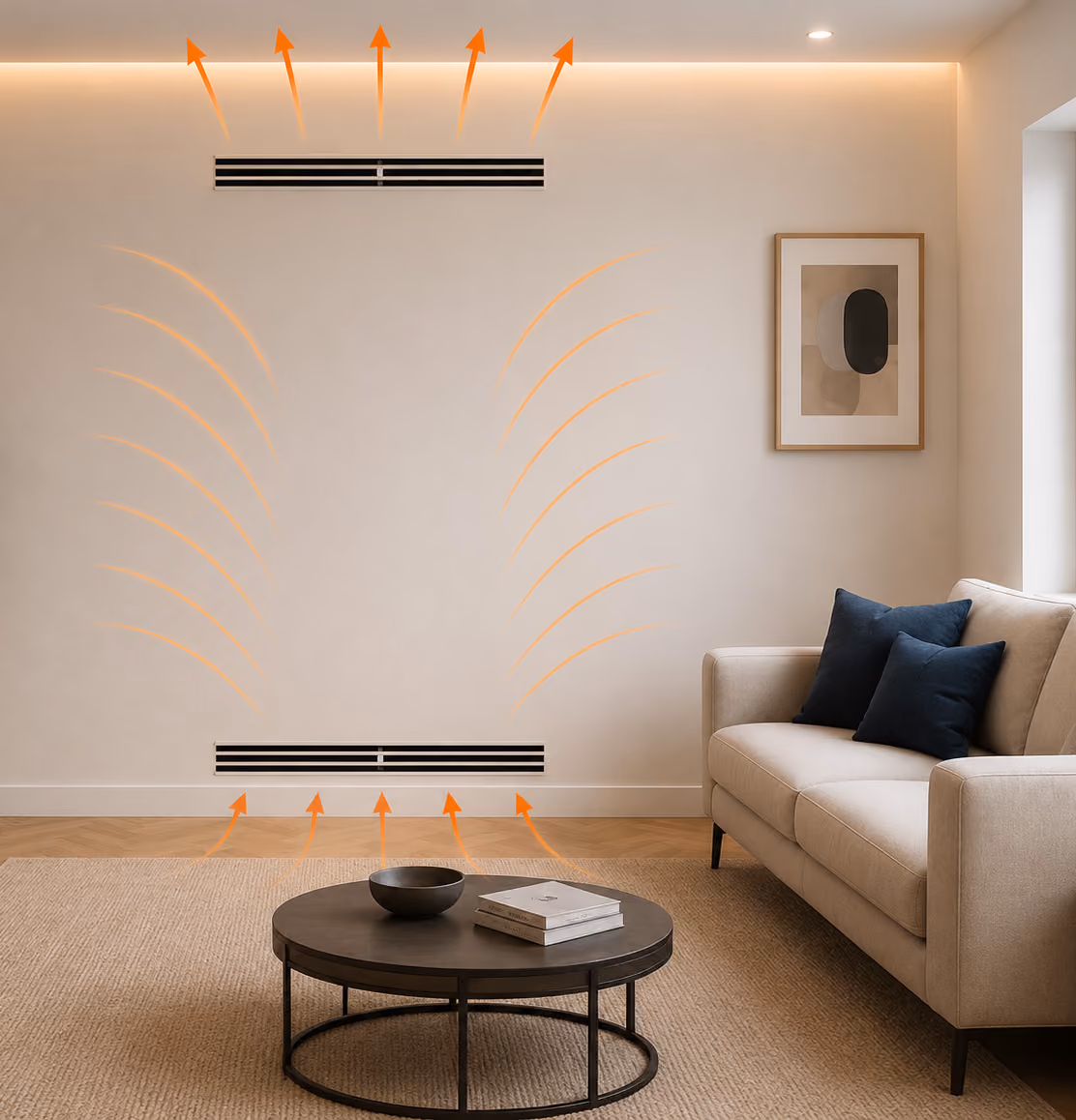

Natural convective airflow: Room air enters through the lower grille, passes across the heated panel and returns throught the upper grille.
Space-Saving Design: Does not project into the room, preserving usable wall and floor space.
Standard Height-90 inch (2286 mm): Designed to fit within standard wall-framing configurations.
Worker installing a metal panel heating system within wooden framing of a house under construction.
WCP-42
42"W × 90"H · 1016 × 2286 mm
Water Temp(°C)
Water Temp(°F)
WCP-42Watts (hr)
WCP-42(BTU/h)
38
100
442
1507
54
129
1010
3445
70
158
1667
5687
82
180
2115
7557
WCP-78
78"W × 90"H · 1981 × 2286 mm
Water Temp(°C)
Water Temp(°F)
WCP-78Watts (hr)
WCP-78(BTU/h)
38
100
862
2939
54
129
1970
6718
70
158
3251
11,090
82
180
4319
14,736

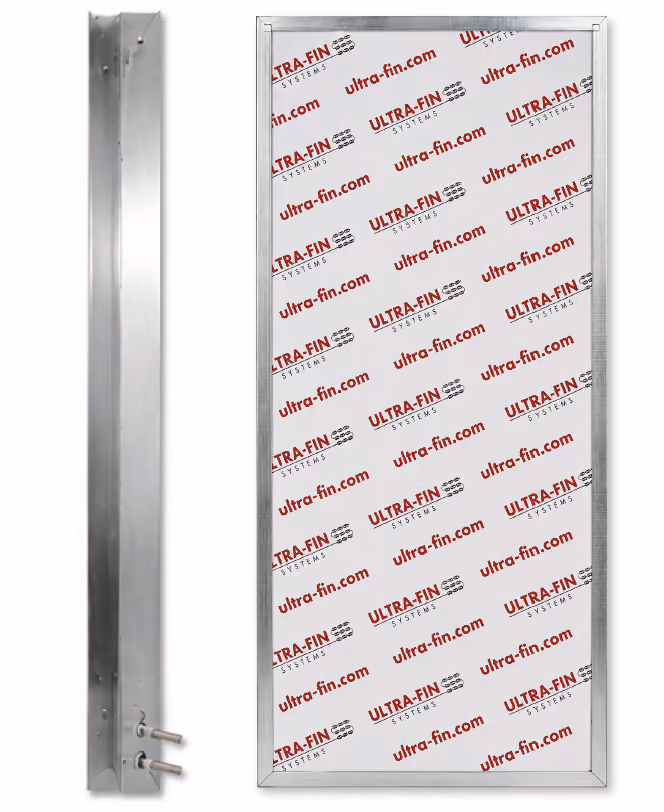

Metal heating element with tubular connectors next to a covered rectangular frame with Ultra-Fin branding.
Panel Details

Panel Output and
Performance

Panel selection is based on the room's calculated heat loss and the system's design water temperature.

Consult your heating designer or engineer to confirm the appropriate panel model and operatging conditions for your project.

HIGH-PERFORMANCE INSULATED CORE
Insulated backing ensures heat is directed into the space.
LIGHTWEIGHT, RIGID PANEL CONSTRUCTION
Durable contruction provides dimensional stability and dependable long-term performance.
FAST INSTALLATION
Installs within standard wall framing, leaving only the flush upper and lower grilles visible.
PRE-ENGINEERED HEAT-TRANSFER SYSTEM
Factory-Installed hydronic tubing and Ultra-Fin™ heat emitters deliver consistent radiant and convective heating.
Planning a hydronic project

Ready to Build a better heating system

Get a qoute or talk to our engineering team about your next hydronic heating project.
